Hydraulic Press
A hydraulic press is a machine press using a hydraulic cylinder to generate a compressive force. It uses the hydraulic equivalent of a mechanical lever, and was also known as a Bramah press after the inventor, Joseph Bramah, of England. He invented and was issued a patent on this press in 1795.
Hydraulic Press
Introduction
This article covers all the information you need to know on hydraulic presses.
You will learn more about topics such as:
- What is a hydraulic press?
- How a hydraulic press works
- Types of hydraulic presses
- Uses for hydraulic presses
- And much more …
Chapter One: What is a Hydraulic Press?
A hydraulic press is a mechanical device that uses the static pressure of a liquid, as defined by Pascal‘s principle, to shape, deform, and configure various types of metals, plastics, rubber, and wood. The mechanism of a hydraulic press consists of a mainframe, power system, and controls.
Pascal‘s principle states that when pressure is applied to a confined liquid, a pressure change occurs in the liquid. For a hydraulic press, the pressure in a liquid is applied by a piston that works like a pump to create mechanical force.
Chapter Two: How a Hydraulic Press Works
The process of a hydraulic press begins when a hydraulic fluid is forced into a double acting piston. The compressive force inside the small hydraulic cylinder pushes the fluid into a larger cylinder where more force and pressure are applied. The movement of the larger piston forces the fluid back into the smaller piston cylinder.
The passage of the fluids between the two pistons creates increased pressure that produces mechanical force to drive the anvil on a hydraulic press downward onto a workpiece that is deformed to produce a desired shape. Once the movement is complete, the pressure is released and the anvil returns to its original position.
How a Hydraulic huPress Works
The components of a hydraulic press include two cylinders, two pipes, and two pistons. One of the cylinders is the ram and the other is the plunger; they are connected by a chamber that is filled with hydraulic fluid.
Ram
In many hydraulic systems, several rams are used, the number of which depends on the working load. Multiple small rams are preferred over a single larger one to allow for better control over the thrust force. Fluid is supplied to the ram by a pump and hydraulic accumulator that works between the rams and the pump.that include crankshafts, flywheels, brakes, and clutches. The lack of continuous maintenance and less expensive parts makes a hydraulic press an ideal method for increasing uptime while reducing overall costs.
Longevity
The first day a machine is placed in operation, its value begins to decrease. It is amortized over the life span of the equipment. The smooth and accurate force that is produced by a hydraulic press can be controlled such that the machine cannot be operated beyond its load capacity. This single feature extends a hydraulic press's time of usefulness and productivity.
Cost
The simple principle used to operate a hydraulic press eliminates many of the factors that make the operation of other processes so expensive. Without the need for elaborate gears, complex braking systems, and various forms of motors, hydraulic presses can operate efficiently and economically to produce high quality parts, components, and assemblies.
Noise
A major concern for government monitoring agencies is the amount of noise that employees are exposed to during their work day. Excessive noise can result in serious medical and mental issues that lead to absenteeism and production down time. Since a hydraulic press does not have any moving parts, its operation noise level is significantly reduced. The precision control provided by a hydraulic press allows management to control the amount of noise it will produce.
Upfront Costs
Another aspect of the mechanical operation of a hydraulic press is the cost of purchasing it. Without the need for machining or mechanical parts, a hydraulic press is less expensive to purchase and takes less time to set up. The simplicity of its operating process becomes economically apparent on the day it is installed.
Range of Designs
From hand operated hydraulic presses to those of several tons, there is a hydraulic press to fit any application or operation. Sales staff and manufacturers work closely with their clients to develop a metal working process that fits the needs of any application. There are table top models for laboratories and massive hydraulic presses that apply hundreds of tons of pressure. Regardless of the material to

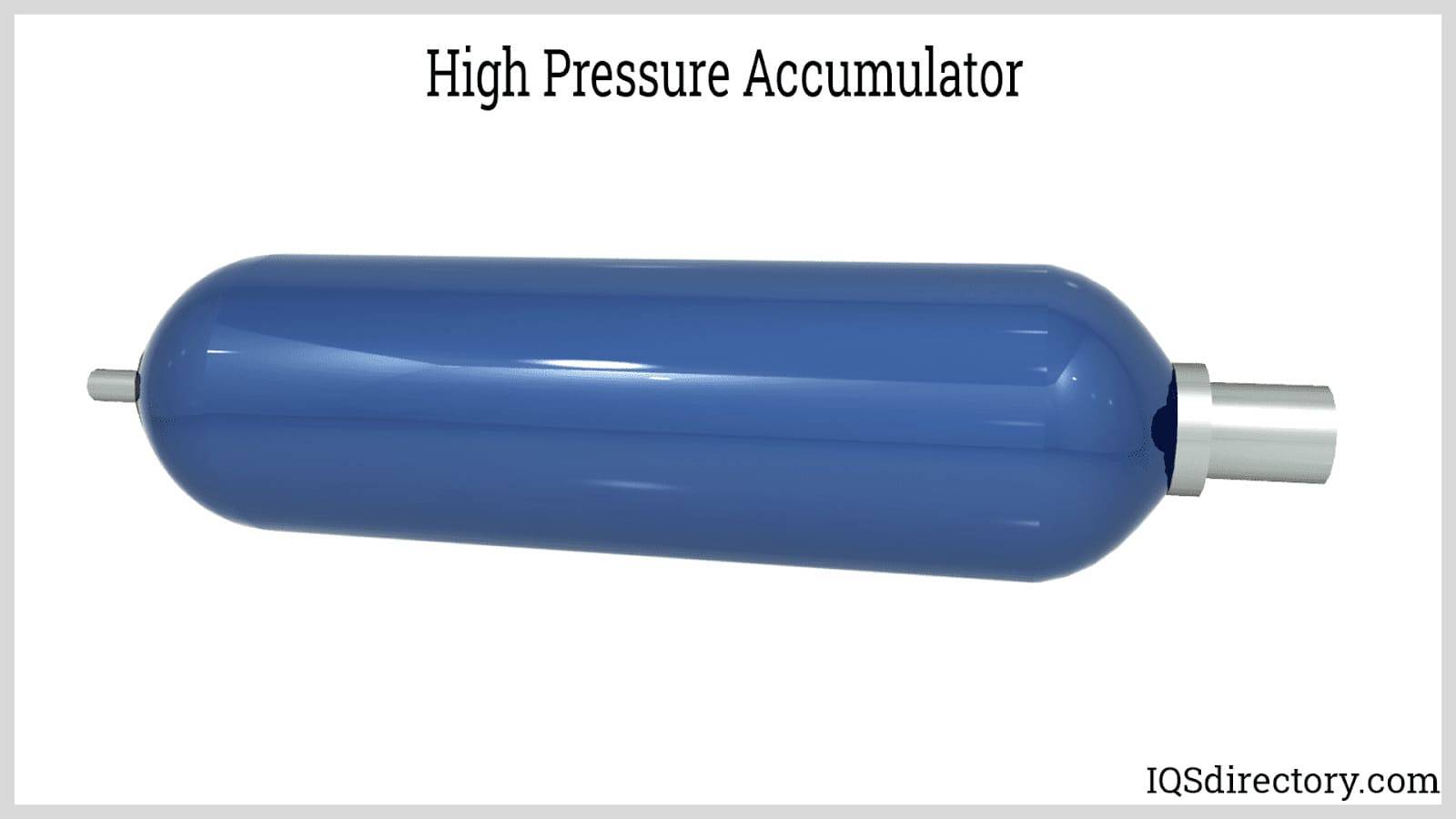

Accumulator
The accumulator stores hydraulic pressure as a fluid, which is released when required. The configuration of a hydraulic accumulator is a cylinder with a piston that is spring loaded or pneumatically pressurized. The pump continuously pumps hydraulic fluid into the accumulator to keep the pressure in it constant. The inlet of the accumulator is attached to the pump, while the outlet is attached to the machine.
Without the accumulator, the pump would have to be continually running. The accumulator helps avoid this by serving as a storage container for the energy needed to operate the machine.
Pump
The three types of hydraulic pumps are vane, gear, and piston with piston pumps being the most commonly used. The pumps for a hydraulic press are a positive displacement pump, which means they deliver a constant amount of fluid with each pumping cycle. The positive displacement pump can be fixed or variable with a fixed pump working at a constant speed while a variable pump changes speeds and can be reversed.
The reason that piston pumps are best suited for hydraulic presses is their ability to perform in high pressure hydraulic systems. The pump operates at large volumetric levels due to its low fluid leakage. The types of piston pumps include axial, bent axis, and radial.shaped and formed, there is a hydraulic press to do the work
Cylinders
The number of cylinders in a hydraulic press varies according to its design. The function of the cylinders is to generate the compressive force that drives the anvil and die. In a two cylinder design, the diameter of the cylinder that carries the ram is larger, while the diameter of the second cylinder that carries the plunger is smaller. Cylinders are metal pipes with two ports for the input and output of hydraulic fluid.
The cylinders are connected by a pipe containing hydraulic fluid. When the plunger in the small cylinder applies pressure to the hydraulic fluid through a downward action, the created pressure is applied to the ram. The action in the smaller cylinder by the downward movement of the plunger is that of a mechanical actuator used to produce unidirectional force by a unidirectional stroke.
Hydraulic Press Process
The mechanical results of the pressure created in the hydraulic system can be seen in the animation below where a plane slug is placed under the anvil, and pressure created by the cylinders drives the ram that drives the anvil down into the slug and forces it into the die.
....Chapter Three: Types of Hydraulic Presses
Hydraulic presses play a major role in the fabrication, assembly, and production of components for machinery and parts for commercial and industrial products. The differences between the types of hydraulic presses are determined by several factors, which include their frame and the metals used to manufacture them.
The popular use of hydraulic presses in manufacturing is due to their ability to apply substantial compressive force to billets to flatten, shape, straighten, stamp, and bend the billets into designs and various forms. The process of hydraulic presses, with the use of a variety of dies, can be changed and customized to fit a wide range of manufacturing requirements.
Types of Hydraulic Presses
H Frame Hydraulic Press
With an H frame (two column) hydraulic press, the frame, press cylinder, pump, and bolster are in the shape of an "H." The uses for H frame presses include work in repair shops, maintenance buildings, and production assembly lines. They have a hand pump for low volume applications or air and electrical pumps where consistent operation is required. The amount of available force in an H frame depends on the size of its cylinder.
C Frame Hydraulic Press
Single column (C frame) hydraulic presses have a body frame in the shape of the letter "C" with a single arm structure. They have excellent rigidity, guide performance, speed, and exceptional precision. They are ideal for small operations and require limited floor space.

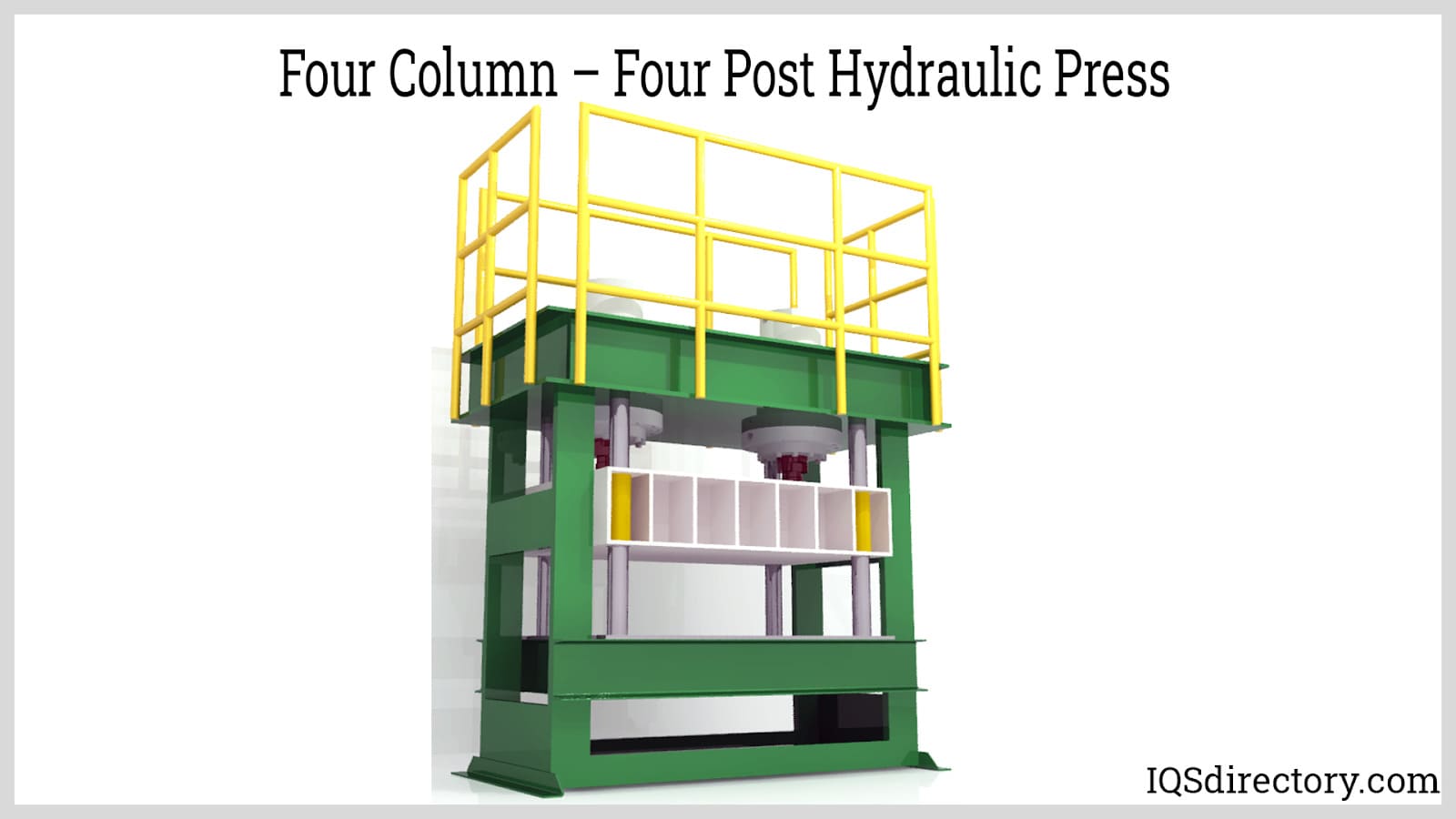

Four Column Hydraulic Press
Four column hydraulic presses can apply substantial force to any size work piece. They can have a single or two cylinder design depending on the requirements of the manufacturing process. Four column presses have a central control system with semi-automatic cycling and adjustable pressure and compression speed. The punching and working pressure are adjusted in accordance with the needs of the stroke range.
and assembly to precise and complex electronics components.Powder Compacting
A powder compacting press compresses different powdered materials into shapes, designs, and densities by applying an exact amount of pressure to the material placed in a mold. Any of the various hydraulic presses can be used for the process, from the two column version to four column version.
To complete the compacting process, the powder mixture is loaded into a steel die where it is pressurized to the shape and form of the die. The three stages of the compressing process deform the particles of the powder and significantly increase its density.

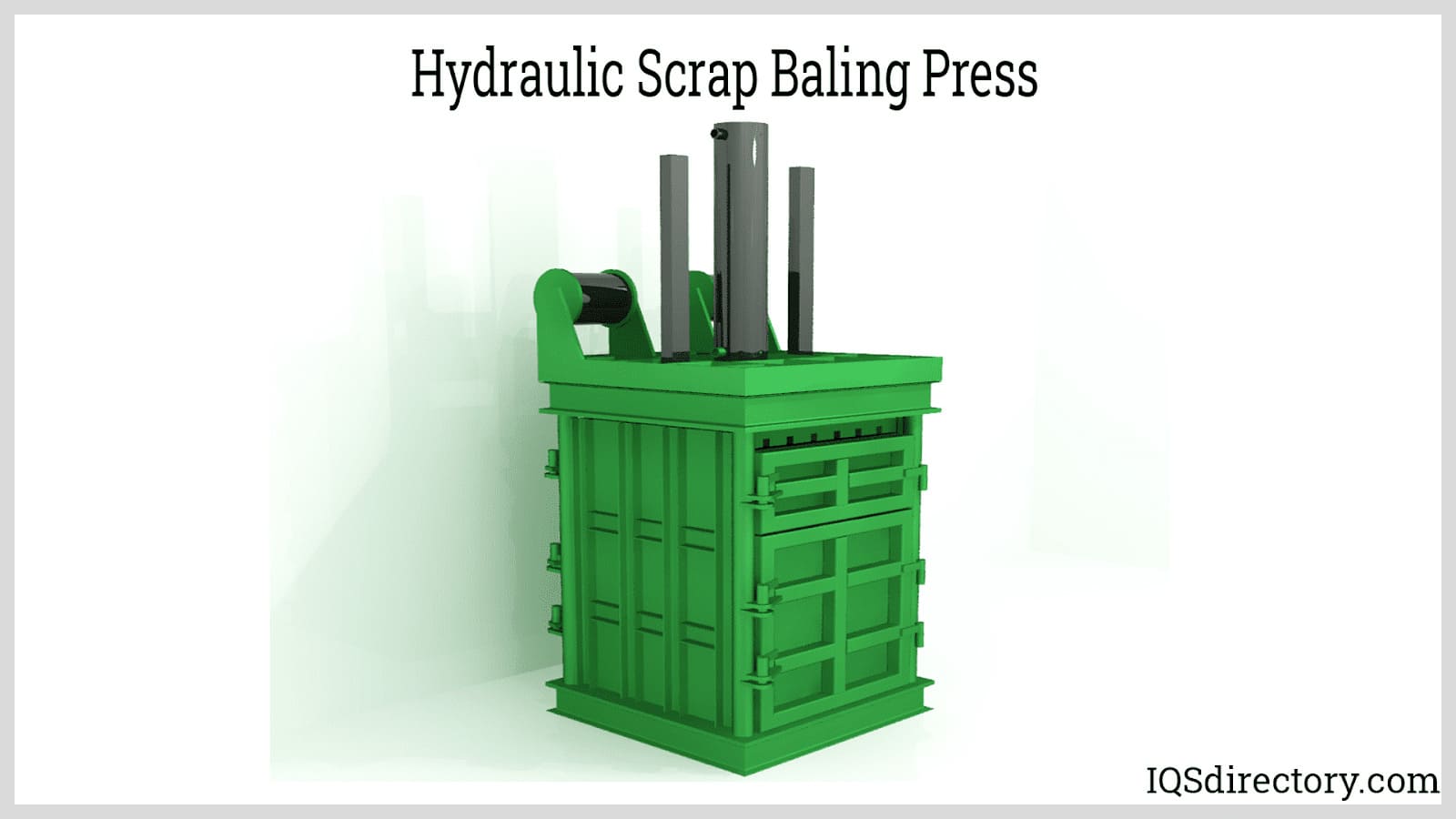

Scrap Baling
An image of hydraulic presses that has become popular in entertainment is the scrap baling press that crushes cars, equipment, and machines. This type of hydraulic press has gained popularity as a method for recycling and repurposing the raw materials from products that are no longer of use.
A hydraulic scrap baler is a cold pressing method for compacting various types of metals for convenient storage, reprocessing, and transport. There are a wide range of scrap balers, with each type designed to crush and compact a particular type of material.

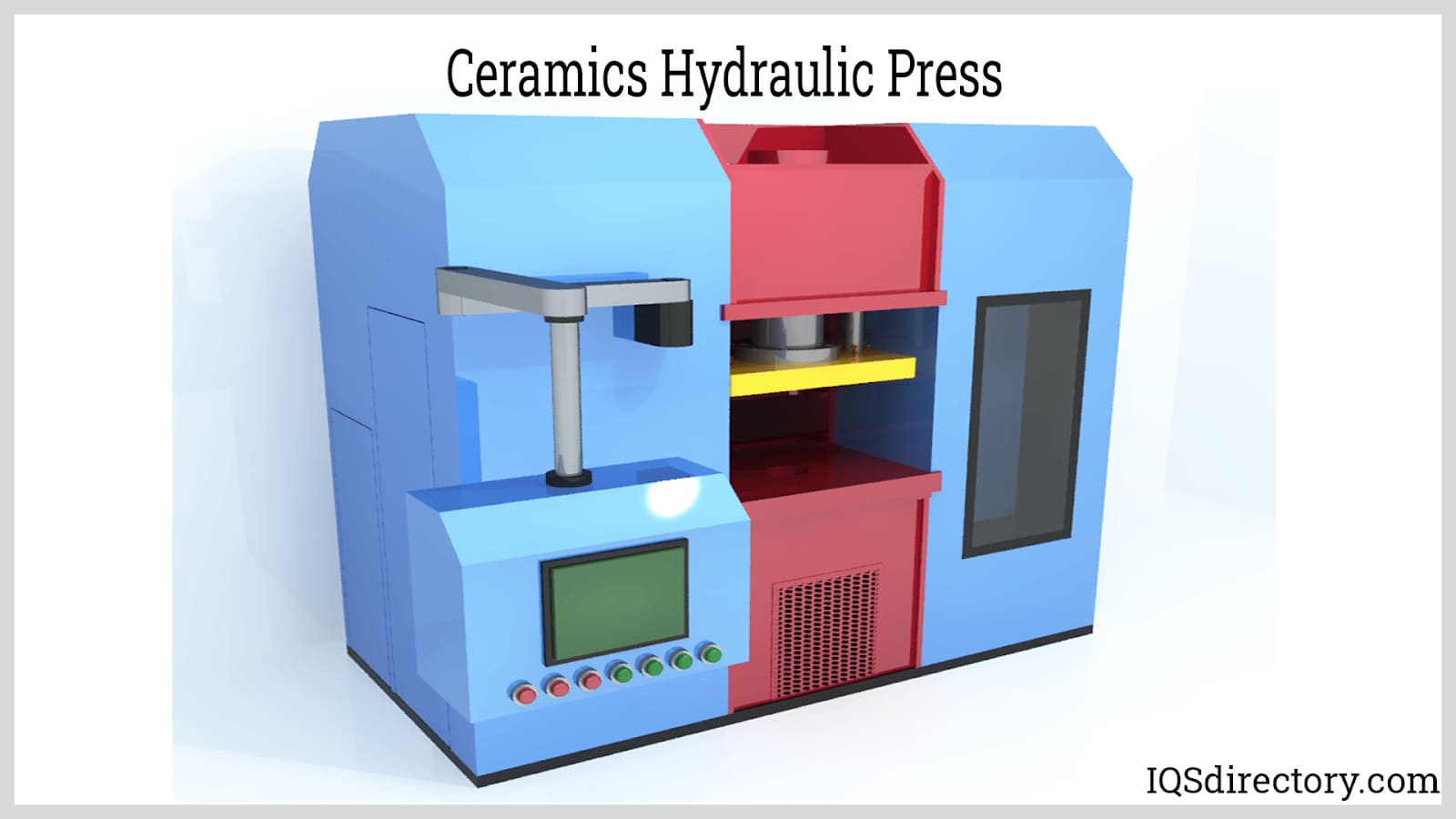

Ceramics Production
The traditional method for shaping and forming ceramics uses a heated kiln at a temperature exceeding 1800° F. The heated method is slowly being replaced by hydraulic presses that work at room temperature. Using minimum pressure and significantly less time, hydraulic presses compress ceramic material into shapes and forms such as bathroom tiles, bricks, and cement.
Laboratory
Laboratory presses are used for the development and production of new products and for quality control of products in production. During product development, manufacturers test their production methods and efficiency using laboratory presses. Though the majority of laboratory presses are small and compact, they can complete all of the functions of a production hydraulic press to provide data and performance guidelines.

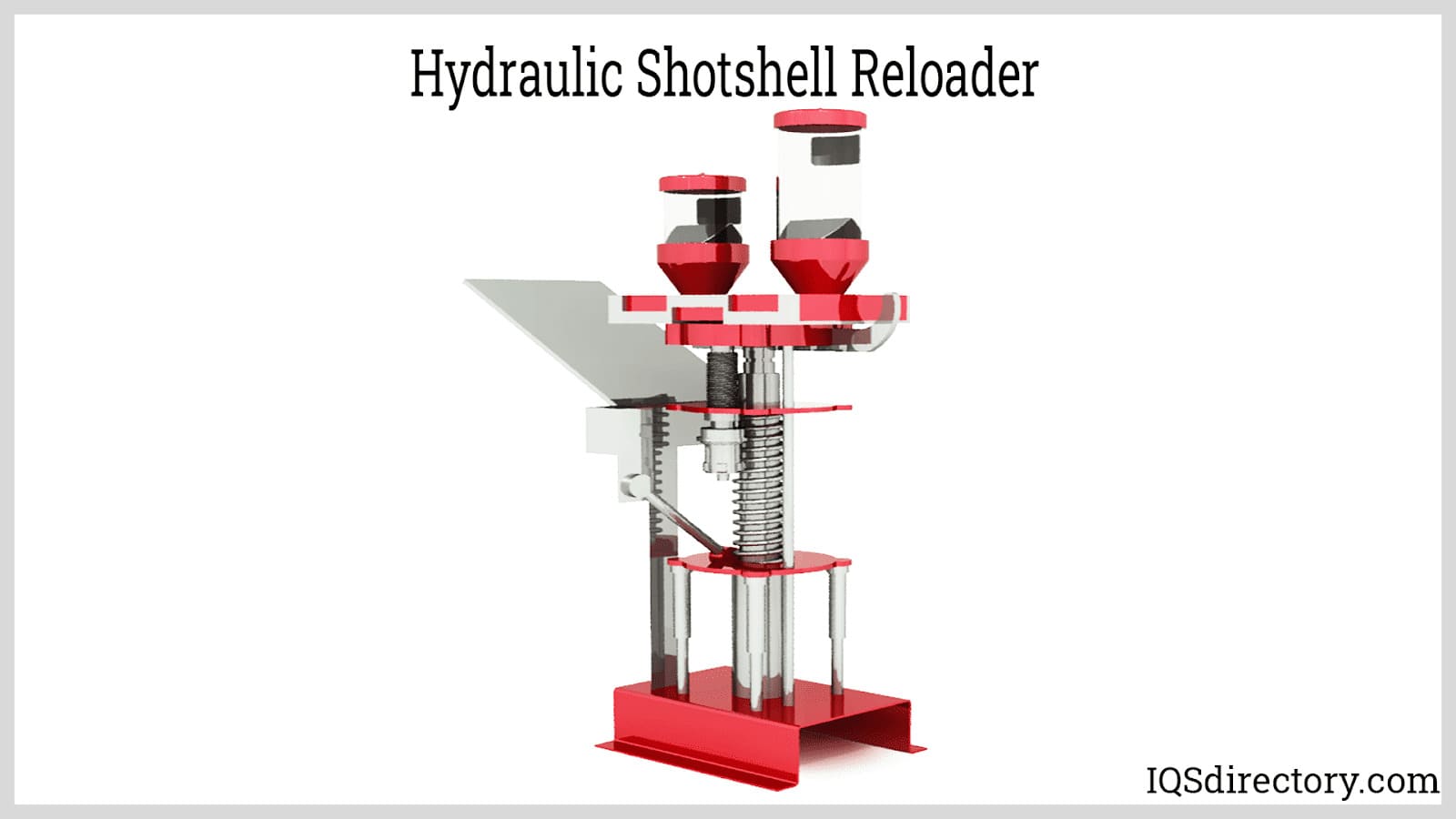

Military
A standard hydraulic press for the military is used to load shells and other ammunition. Other applications are fuel cell compression and the production of tracks and tires. Applications for military manufacturing require technically defined metal formed parts that have to meet specific dimensions and tolerances. Hydraulic presses used to produce parts for the military meet the demand for minimal variations in quality and performance.
Concrete Testing
Concrete is extensively used in the construction industry for building skyscrapers, warehouses, and manufacturing facilities. Manufacturers of concrete use hydraulic presses to test the tensile strength and behavior of set concrete. The tests provide data regarding predefined tension softening. The acquired data is used to adjust the concrete mixture to meet the required standards.
Conclusion
- A hydraulic press is a mechanical device that uses the static pressure of a liquid, as defined by Pascal‘s principle, to shape, deform, and configure various types of metals, plastics, rubber, and wood.
- The passage of the fluids between the two pistons creates increased pressure that produces mechanical force to drive the anvil on a hydraulic press downward onto a workpiece that is deformed to produce a desired shape.
- The differences between the types of hydraulic presses depend on several factors, which include their frame and the metals used to manufacture them.
- From the shaping and creation of machine components to the crushing and compacting of waste and refuse, hydraulic presses are an essential part of modern industrial operations.
- Since the development of the Bramah Hydraulic Press at the end of the 18th Century, the hydraulic press has rapidly improved and advanced to become a highly technical tool that can provide precision and accurate deforming of materials.
